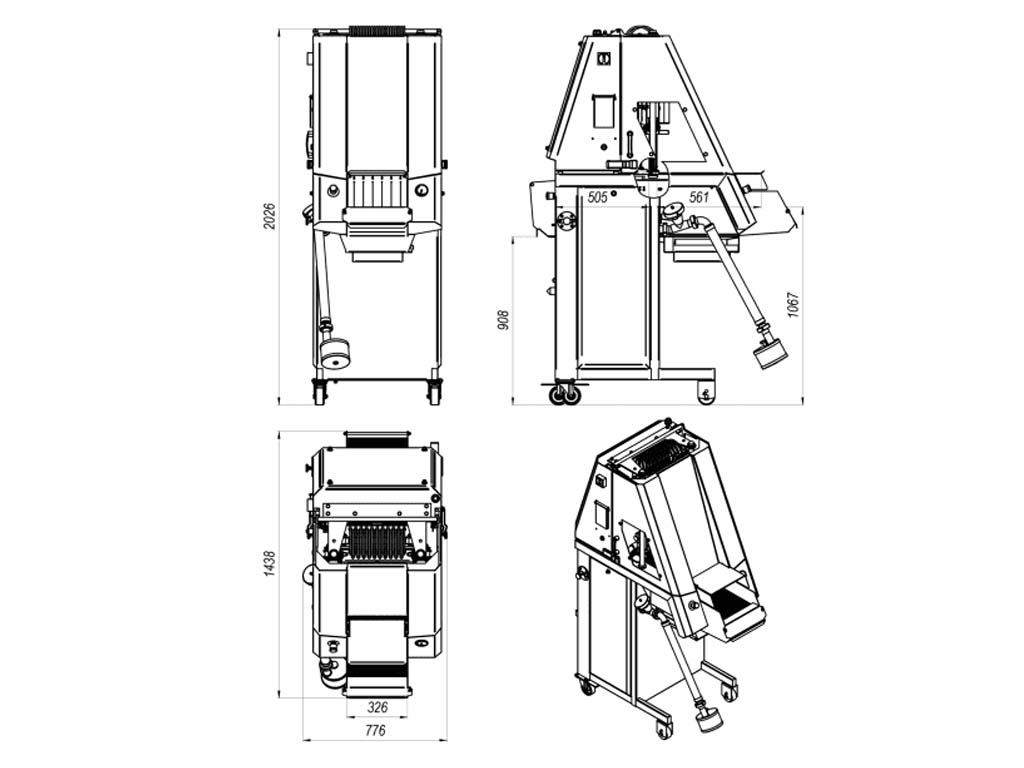

• External Dimensions (WxDxH)see diagram
• Throughput500-1000kg/h (depending on product)
• Working Width375mm
• Working Height160mm
• Number of needles39 (single needle) 78 (double needle)
• Conveyor Belt Speed16, 36 or 75mm/cycle (adjustable)
• Stroke of Injection Head20,21,22.....40 strokes/min
• Electrics3ph 400V 50Hz 2.4kW
• Weight430kg

Application:

Designed for effective and uniform distribution of brine into bone-less and bone-in meat muscles. Machine is equipped with needles working on the 0,5 - 3,2 bars pressure . Brine is in the closed circulation with filtration system.

Standard Equipment:

• Construction according to CE directives
• Complete stainless steel construction AISI 304
• Maximum number of needles in 1 socket : double. 39 x 2 = 78 injection points
• Diameter of needles either 3 mm all long for poultry either 3,5 mm for bacon or 4 mm for bone-in pork/beef
• Number of sockets is 39 (MHM-39)
• Microprocessor control HMI is based? TOUCH PANEL MITSUBISHI
• Easy Exchangeable head with triple? needles as standard
• Variable speeds of injection head in a range 20 to 40 .?
• Max. height of injection head: 200 mm
• Max. product height before injection: ca 160 mm. after injection = 190-200 mm
• Plastic conveyer belt easily washable
• Width of a conveyer: 375 mm (MHM-39)
• 3 speeds of a conveyer?s advancement
• High yield, durable centrifugal stainless steel pump
• Smoothly adjustable brine pressure (0,5- 3,2 bar standard)
• Multi-stage filtration system easily washable
• Stainless steel brine tank with capacity of 120 ltr (MHM-39)
• Stirring (preparation) and pumping out or brine from the brine tank
• Upper drive for the needle head
• Whole construction of machine meeting the highest hygienic requirements
• Regulation of stripping plate on 3 heights to avoid overinjection.
• All electric parts from Moeller, Schneider, Nord, SEW, ABB. Electronic based on Mitsubishi parts
• Hygienic construction easy to clean.
• Extra tubular filter already included in the machine in the FISH VERSION.
• Distance 550 mm : needles - end of the cover

Control System:

• easy to read and operate control panel based on colour touch panel MITSUBISHI
• possibility to regulate: speed of injecting head (2 speeds), brine pressure regulation (0,5 ? 3,2 bars ? step 0,1 bars), name/number of program
• english/spanish language as operating language
• protective cover before flush of water
• protection level: IP 66 for control panel?
• display of day/time
• service menu
• autodiagnostic mode

Output in real terms at factory level, operated by 1 person from input side:
