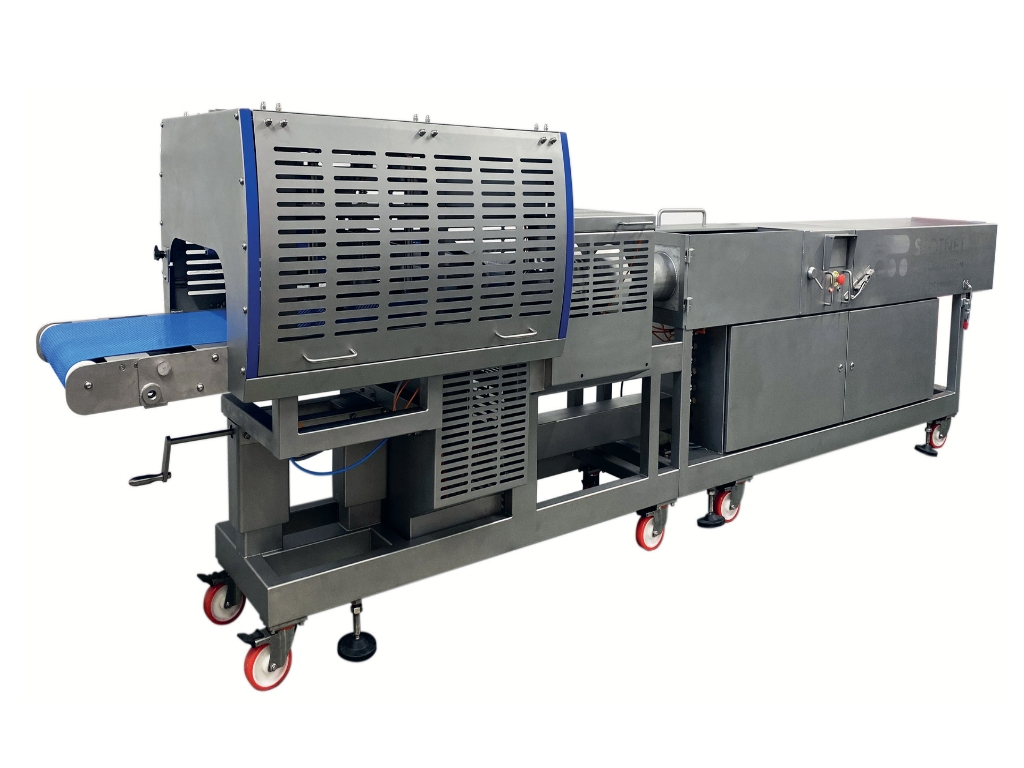

DS1200P7AC3 HIGH SPEED AUTOCUT DOUBLE MEAT STUFFER



OUTPUT: UP TO 1000 JOINTS PER HOUR - 7000 JOINTS PER DAY WITH ONE OPERATOR

SCOTNET manufacture a whole range of meat-stuffing machinery. The AUTOCUT Double Stuffer is the latest and most advanced double stuffer so far! The standard Double Stuffer, invented by us, has become the meat netting stuffing machine of choice for all larger processors. The Autocut version is already proving to be the next major advance in automating meat stuffing into elastic meat netting, by halving the labour required. SCOTNET has installed these meat-stuffing machines in factories all over the world.

This model is for tubes that are 700mm long, and between 70mm and 200mm in diameter. It is complete with a stand.

Key Features

• Works with 700 mm Scotnet Tubes, more net means less downtime and more output.
• Single Operator - just load the chambers with meat, and the joints are netted, and the netting is cut automatically.
• Short Netting Tails - precisely control the tails of the net, reducing waste and therefore saving money.
• Run different diameters on each side if required
• Pneumatics manufactured by Festo. Spare parts are easily accessible worldwide through Festo distributors or direct from SCOTNET.
• Ewon - Operating on either LAN or sim card - our remote access to the machine allows your engineers or ours to log output and diagnose faults remotely.
• The entire DS1200P7 range is controlled by PILZ safety relays. All connections are at least IP65 or above, ensuring reliability in even the wettest environments.
• HMI controlling machine functions, reporting output and efficiency figures, password protection and engineering diagnostics.
• Chamber sides open for easy cleaning and fast tool-less size change.
• Emergency Stop buttons mounted on both sides.
• Operated with compressed air and single-phase power supply.
• CE marked.
• Braked Castors on the floor stand ensuring secure footing while working and easy movement when required.
• Simple operation, simply close lid to start operation

Options

• AWI Automatic Water Injection
  Injects a fine spray of water into each chamber each cycle to allow easy movement of dry products such as pork.

Please note, that the price is for the base machine only and doesn't include tubes, chambers and pistons.














TECHNICAL INFORMATION:

Speed
The machine will cycle at over 1000 units per hour. Production speeds will depend on the product and the input and output flow to the machine.

Weight
Approximately 900kg

Services
Compressed Air
Pressure: 80 psi (5.5 BAR) minimum
Flow: 50ft3 or 1415 litres per minute

Electrical
230 V, Single Phase, 10 amp supply

Packing Crate Dimensions
Length 4546mm x Width 1000mm x Height 1600 mm
